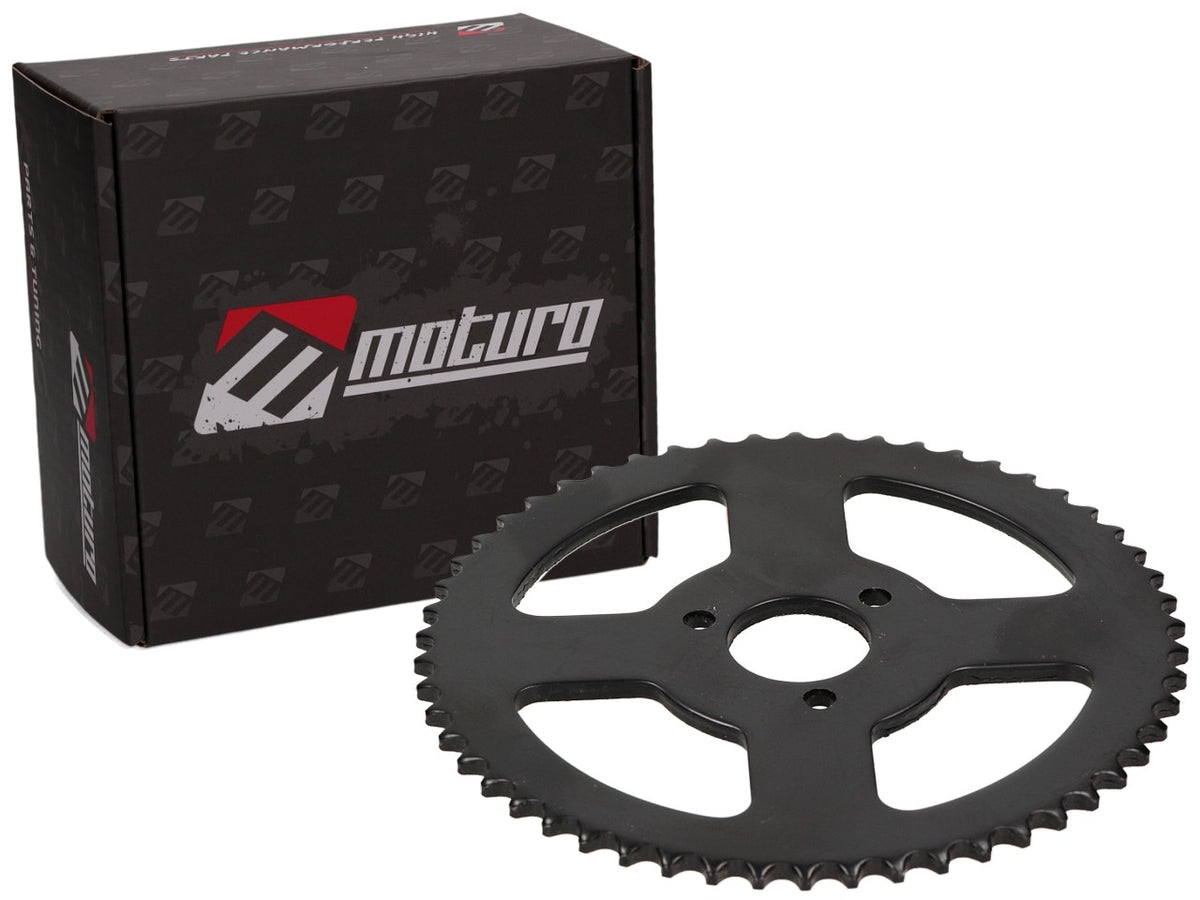

Moturo chain sprocket wheel 54 teeth large TF8

Moturo sprocket with 54 teeth for T8F chain

The Moturo 54-tooth sprocket for the T8F chain on mini quads and ATVs — the typical wear part on the rear wheel alongside the pinion and chain. 8 mm tooth spacing, 26 mm center hole, ready to install.

The sprocket is located on the rear wheel and transmits power from the drive chain to the wheel. 54 teeth, 8 mm tooth spacing for T8F, tooth thickness 4 mm at tooth height, center hole diameter 26 mm, bolt hole spacing 33 mm.

In a T8F drive system, the sprocket is a wear part along with the chain and pinion. When replacing it, check the chain and pinion as well, as worn-out components will quickly cause premature wear on a new sprocket.

Replacement takes about an hour using a hex key set, a socket wrench for the mounting nuts, and a torque wrench.

Sprocket for mini quads and ATVs, made by Moturo.

Performance · Material · Figures

• 54 teeth, 8 mm tooth spacing for T8F
• Tooth thickness 4 mm at tooth height
• Center hole diameter 26 mm, bolt hole spacing 33 mm

Important notes – please read

Original spare part design, no separate ABE (general operating permit) required. Compare geometry and bolt hole spacing with the values of the installed sprocket before ordering.

Tools & Time required

• Hex key set in standard sizes
• Socket wrench for the mounting nuts
• Torque wrench
• About one hour for an experienced mechanic

Scope of delivery

1 × 54-tooth sprocket. Not included: mounting screws, chain, pinion, tools.

Frequently asked questions

Does the sprocket fit every T8F chain?
Yes, provided the center hole (26 mm) and the bolt hole spacing (33 mm) match your wheel hub.

What gear ratio does a 54-tooth sprocket provide?
It depends on the front pinion. 54 teeth at the rear provides a short gear ratio with strong acceleration.

Do I need to replace the chain and pinion at the same time?
If there is visible wear, yes; otherwise, the old drive components will quickly consume the new sprocket.
