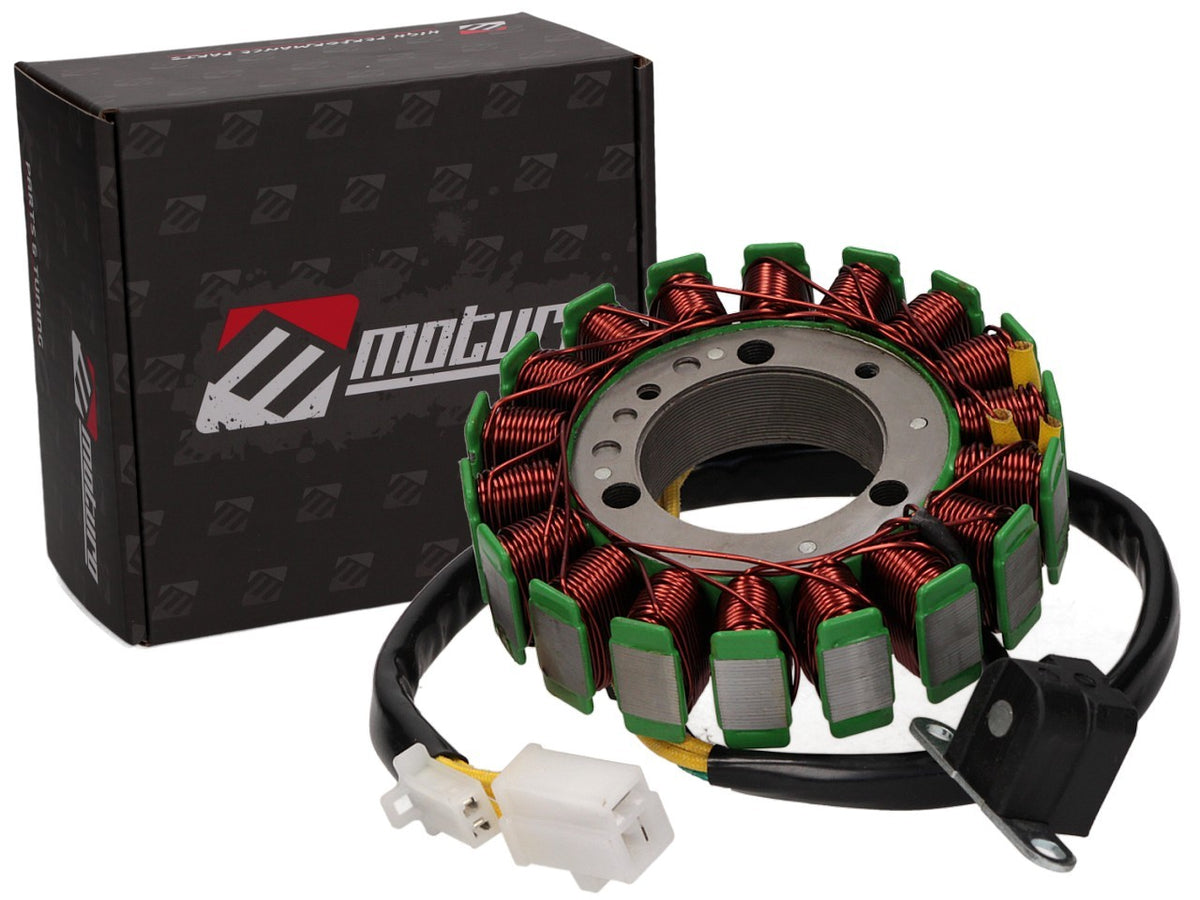

Moturo alternator for Yamaha YP 250

Moturo Alternator for Yamaha YP 250 Majesty 96-03

The Moturo alternator for your Yamaha YP 250 Majesty (96-03) — often the actual culprit behind weak battery charging and misfires, and faster to replace than to test. Designed like the original part, ready for installation.

The alternator is located behind the flywheel on the end of the crankshaft and provides voltage for the CDI, voltage regulator, and vehicle electrical system.

Construction and performance correspond to the original part. Covers YP 250 (model years 1996 to 1998, 20 hp), YP 250 DX and DXA (1998 to 1999), as well as YP 250 from model year 2000 (22 hp) and YP 250 A (2003). Compare connections with the old part before ordering.

Replacement takes about an hour with a socket set, flywheel puller, and torque wrench.

Alternator for the YP 250, made by Moturo.

Performance · Material · Specs

• Construction and performance correspond to the original part
• Covers 20 hp and 22 hp versions at 250 cc (model years 1996 to 2003)
• Ready for installation; compare connections and plugs with the old part before installing

Important notes – please read

Original spare part design, no separate ABE (general operating permit) required. Small adjustments were made to the vehicle electrical system throughout the model years 1996 to 2003 — compare the connection layout and plugs with the old part before installation.

Tools & Time Required

• Socket set for the fastening screws
• Flywheel puller suitable for the YP 250 flywheel
• Torque wrench
• About one hour for an experienced mechanic

Scope of delivery

1 × alternator (ready for installation). Not included: flywheel puller, tools, separate connection cables.

Frequently Asked Questions

Does this alternator fit the YP 250 R / Majesty from model year 2004 onwards?
Compare the plug layout and connections with the old part before ordering — the YP 250 was revised starting in 2004.

Do I need a TÜV registration?
No. Original spare part design, no separate ABE required.

What if the connections don't fit 1:1?
Do not install. There were small adjustments to the vehicle electrical system throughout the model years — contact the supplier in case of doubt.
