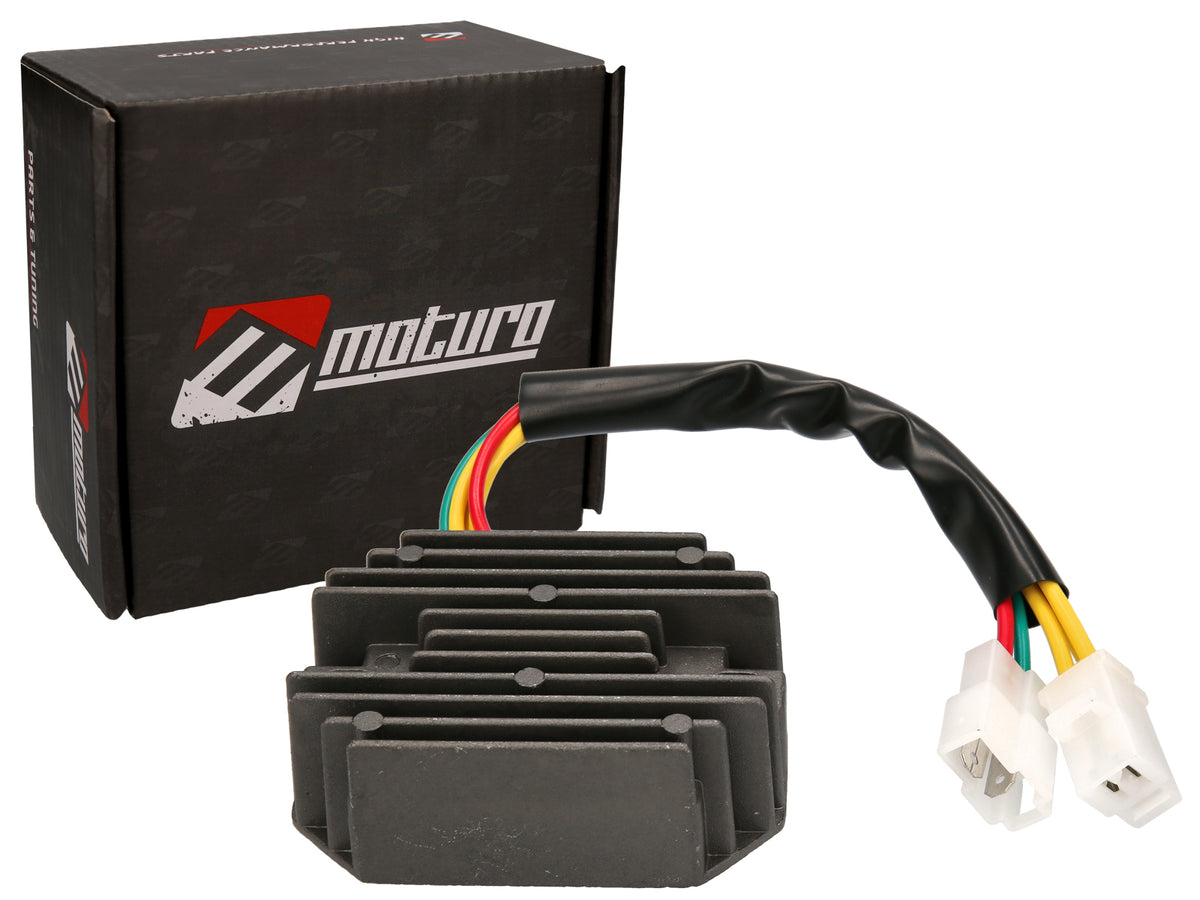

Moturo voltage regulator rectifier for Suzuki LS 650 S40 SV 650 650S

Moturo voltage regulator rectifier for Suzuki LS 650 and SV 650 86-06

The Moturo voltage regulator for your Suzuki LS 650 and SV 650 (model years 86-06) — converts the alternator’s AC voltage into stable 12-volt vehicle electrical system voltage. Based on the original in design and performance, ready for installation.

The regulator corresponds to the original in both design and performance. It converts the AC voltage generated in the alternator into 12-volt vehicle electrical system voltage and keeps it within the tolerance range. This ensures the battery is charged and that light bulbs and control units are protected against overvoltage. The connection and plug follow the OE geometry of your Suzuki LS 650 and SV 650.

Replacement takes about half an hour with a socket wrench and a screwdriver.

Voltage regulator for Suzuki LS 650 and SV 650, made by Moturo.

Performance · Material · Specifications

• 12-volt vehicle electrical system voltage, regulated within the tolerance range
• Connection and plug in OE geometry for the LS 650 and SV 650
• Converts alternator AC voltage into DC voltage
• Protects battery, light bulbs, and control units from overvoltage

Important notes – please read

Original spare part design, no separate ABE (general operating permit) required. Before ordering, compare the plug, pin assignment, and mounting points with the product image. Fits Suzuki LS 650 (model years 1986 to 2000) and SV 650, SV 650 U, as well as SV 650 S (model years 1999 to 2006); other model years are not approved.

Tools & time required

• Socket wrench for the mounting nuts
• Screwdriver
• About half an hour for an experienced mechanic

Scope of delivery

1 × voltage regulator rectifier (ready for mounting). Not included: mounting hardware, cable ties, tools.

Frequently asked questions

Does this regulator also fit the SV 650 from 2007 onwards?
No, from 2007 onwards the plugs and pin assignments differ. Please verify the model and year before ordering.

Do I need a TÜV registration?
No. Original spare part design, no separate ABE required.

Does the regulator charge the battery reliably?
Yes, the voltage range and load capacity follow the specifications of the original regulator. Replacing the regulator will not fix a weak battery — please check the battery condition beforehand.
