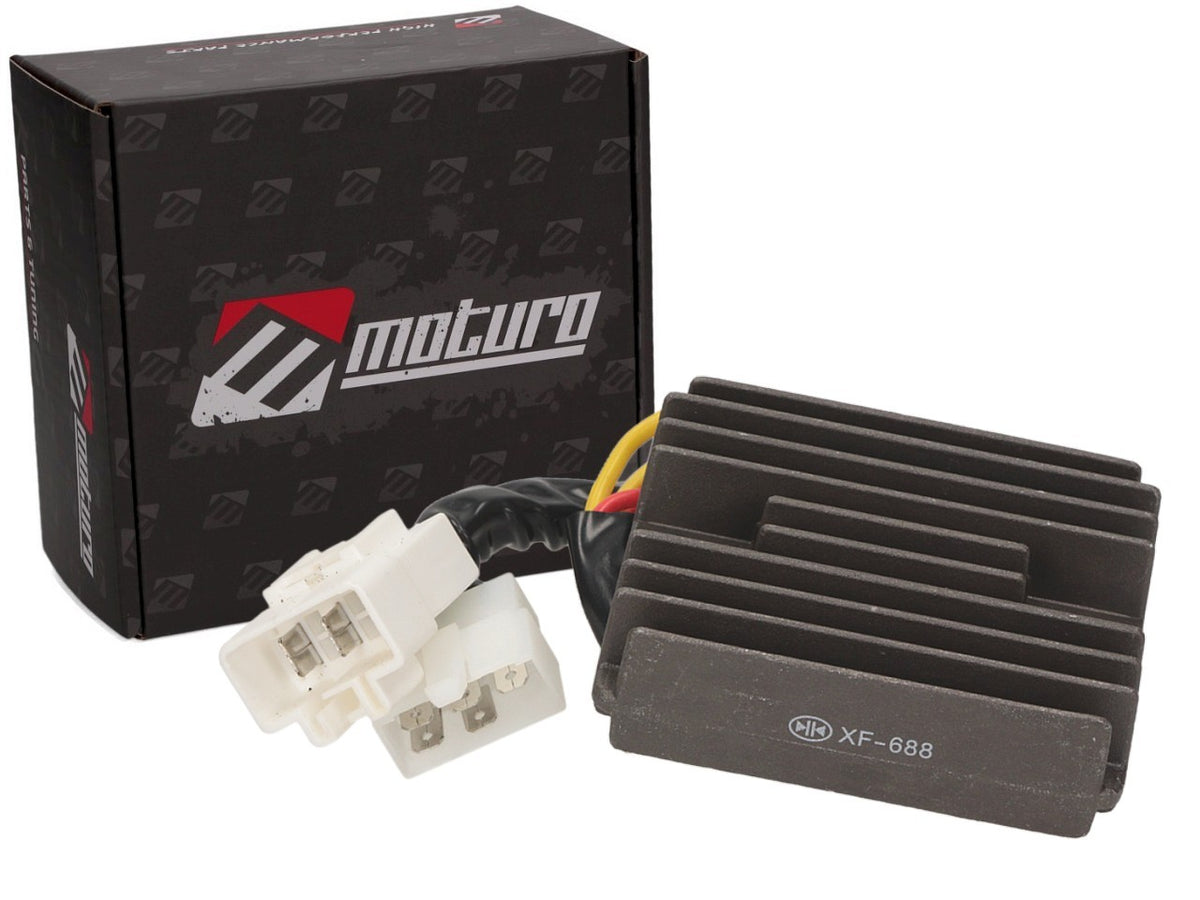

Moturo voltage regulator rectifier suitable for Honda CBR 900 954RR

Moturo Voltage Regulator Rectifier for Honda CBR 900 RR 02-03

The Moturo voltage regulator with integrated rectifier for your Honda CBR 900 RR 02-03 (954RR) — converts the alternator's AC voltage into 12V DC onboard voltage. Design and performance correspond to the original, ready to install.

The voltage regulator is located in the electrical system between the alternator and the battery. It converts the AC voltage generated by the alternator into 12V DC voltage and keeps it within a precisely defined tolerance range. This ensures the battery stays properly charged and that electrical consumers such as light bulbs, control units, and cockpit electronics do not burn out.

Design and performance correspond to the original part for the CBR 900 RR (954RR, model years 2002 to 2003).

Replacement takes about half an hour using a hex key set and a socket wrench set for the mounting nuts.

Voltage regulator for the CBR 900 RR, made by Moturo.

Performance · Material · Specs

• Converts the alternator's AC voltage into 12V DC voltage
• Keeps the onboard voltage within the specified tolerance range
• Design and performance correspond to the original for the CBR 900 RR (954RR)
• Model compatibility: Honda CBR 900 RR, 954cc, 150 hp / 110 kW, model years 2002 to 2003

Important Notes – please read

Original spare part design, no separate ABE (general operating permit) required. No registration of the replacement is necessary. Please compare the pin configuration and physical dimensions with your current regulator before ordering.

Tools & Time Required

• Hex key set in common sizes
• Socket wrench set for the mounting nuts
• Approximately half an hour for an experienced mechanic

Scope of delivery

1 × voltage regulator rectifier (ready for installation). Not included: mounting screws, tools.

Frequently Asked Questions

Does this regulator fit the CBR 900 RR before 2002 (SC33, SC44)?
No, the pin configuration is different.

Do I need a TÜV registration?
No, original spare part design.

How do I check if my old regulator is defective?
Check the charging and onboard voltage with a multimeter; if the battery is constantly discharged or light bulbs keep burning out, the regulator is a common culprit.
