Moturo voltage regulator rectifier suitable for Honda VF 500F

Moturo Voltage Regulator Rectifier for Honda VF 500F 84-85

The Moturo voltage regulator rectifier for your Honda VF 500F (model years 84-85) — converts AC voltage into 12V DC and maintains it within the tolerance range. Ready for installation on the original mount.

The regulator sits between the alternator and the battery. It converts the AC voltage generated by the alternator into the 12V DC required by the vehicle's electrical system and keeps it within a defined tolerance range. This ensures the battery charges properly and light bulbs do not burn out.

The design follows the original regulator style of the VF 500F and VF 500 F2 from 1984 to 1985; the connector configuration and mounting holes match the factory setup.

Replacement takes about half an hour with a socket wrench set and a screwdriver.

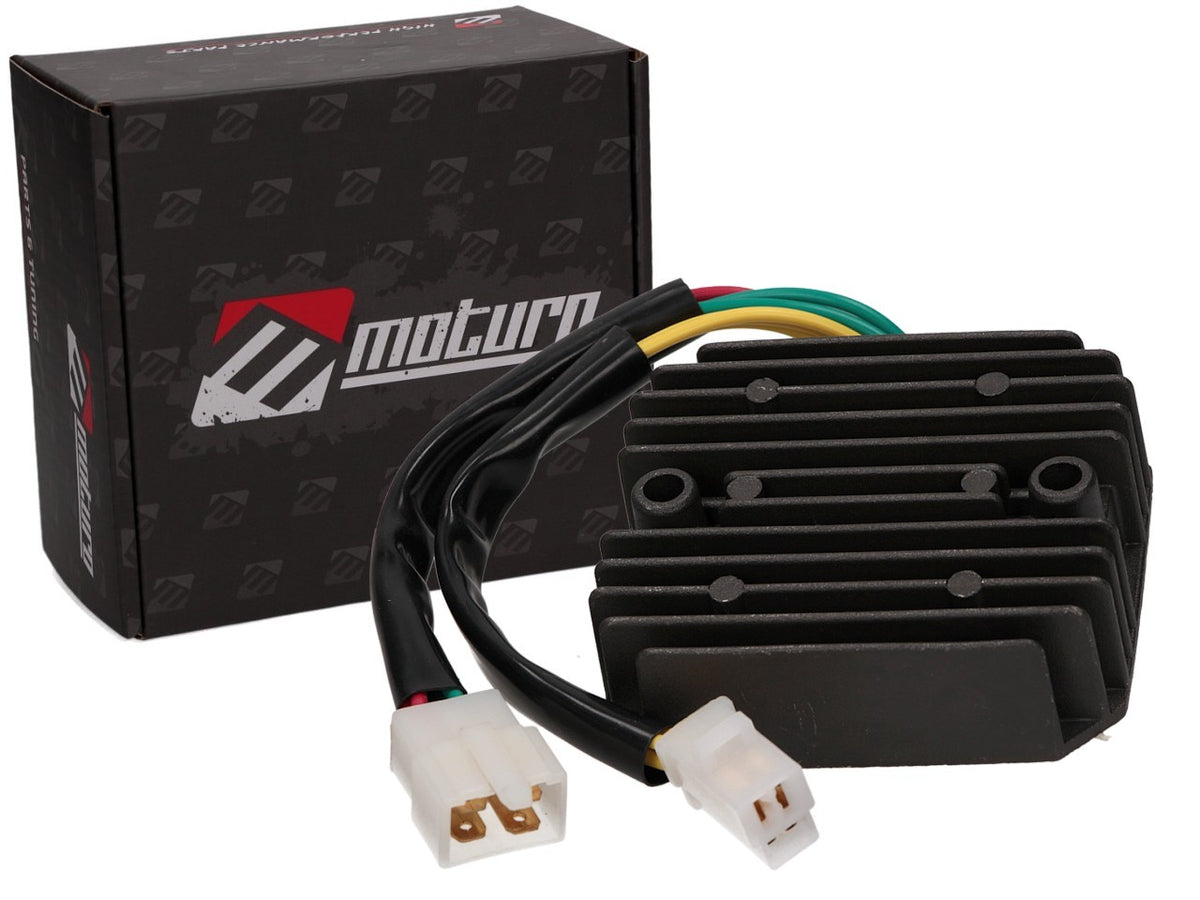

Voltage regulator for the VF 500F, made by Moturo.

Performance · Material · Specifications

• Converts AC voltage from the alternator into 12V DC for the vehicle's electrical system
• Maintains vehicle voltage within the tolerance range, protecting the battery and light bulbs from overvoltage
• Design and performance correspond to the original VF 500F component
• Connector configuration and mounting compatible with the factory setup

Important Notes – Please Read

Original spare part design, no separate ABE (general operating permit) required. Replacement does not require registration. Precisely fits the Honda VF 500F and VF 500 F2 (model years 1984 to 1985); other models have different connector configurations.

Tools & Time Required

• Socket wrench set for regulator mounting
• Phillips screwdriver for the wiring harness connector
• Multimeter for functional testing after installation
• About half an hour for an experienced mechanic

Scope of Delivery

1 × Voltage regulator rectifier (ready for installation). Not included: tools, mounting screws, plug connectors.

Frequently Asked Questions

Does this regulator also fit other Honda models?
No, it is made for the VF 500F and VF 500 F2, model years 1984 to 1985. Other models have different alternators and connector configurations.

How do I check if my old regulator is defective?
Use a multimeter on the battery terminals with the engine running: a constant reading over 15V or under 13V indicates a defective regulator.

Do I need a registration/approval?
No. Original spare part design, no ABE necessary.
