BrakesItem no. 6235834
Moturo front brake caliper for pocket bike dirt bike
The fit is not yet confirmed.
Choose vehicleThe fit is not confirmed. Compare the vehicle details under “Vehicle fit” with your vehicle.
- Questions about fit?Include your vehicle details and the item number.
- Shipping€5.99 within Germany, free from €100.
- Withdrawal14-day statutory right of withdrawal.
- Product safetyManufacturer and safety information for this item.
Description

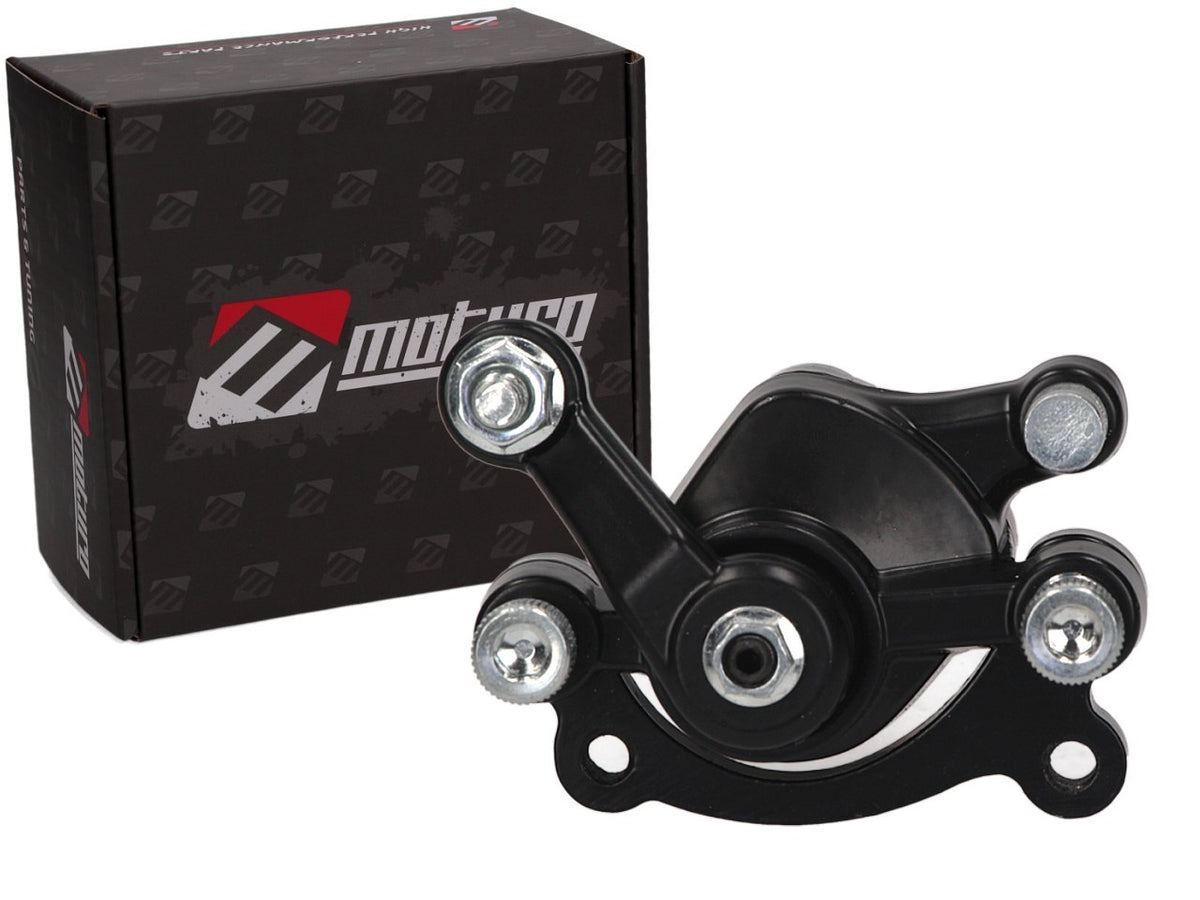

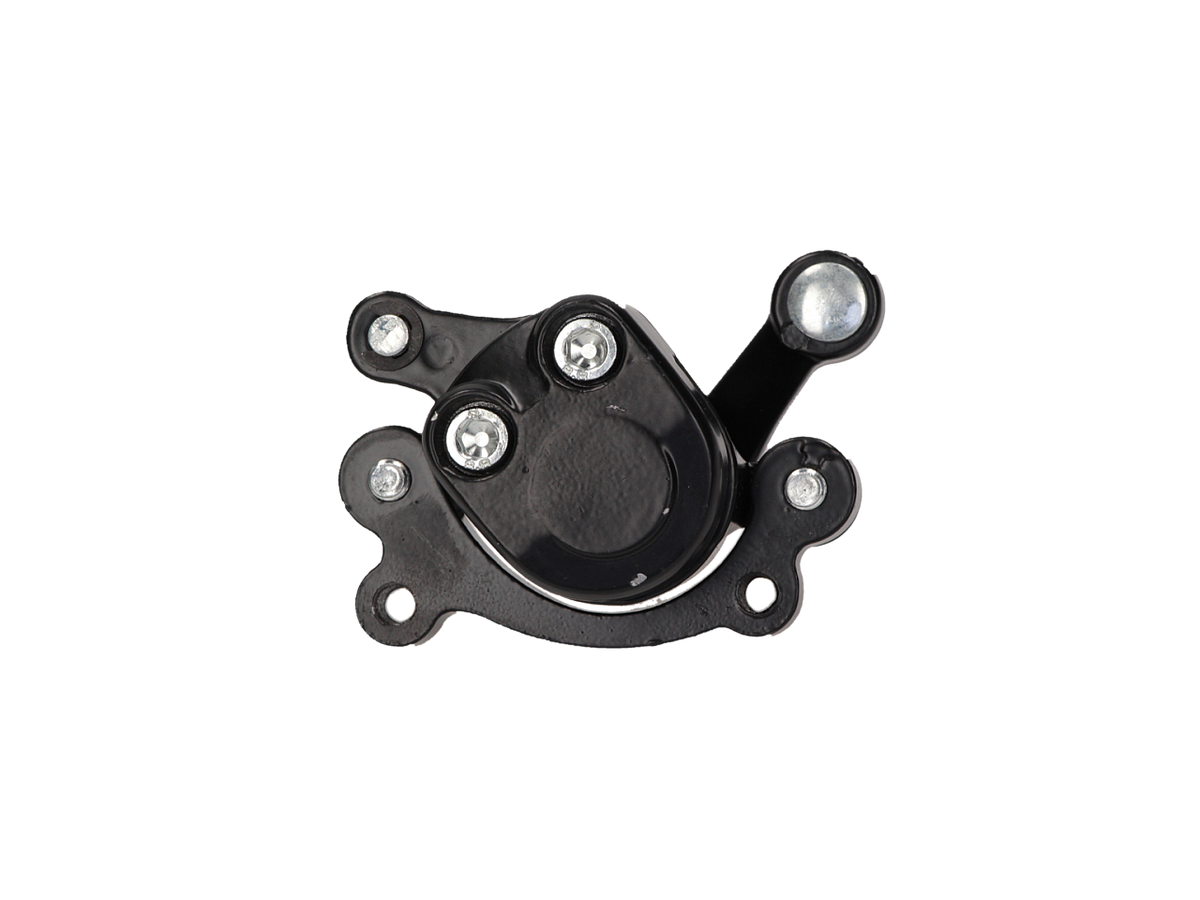

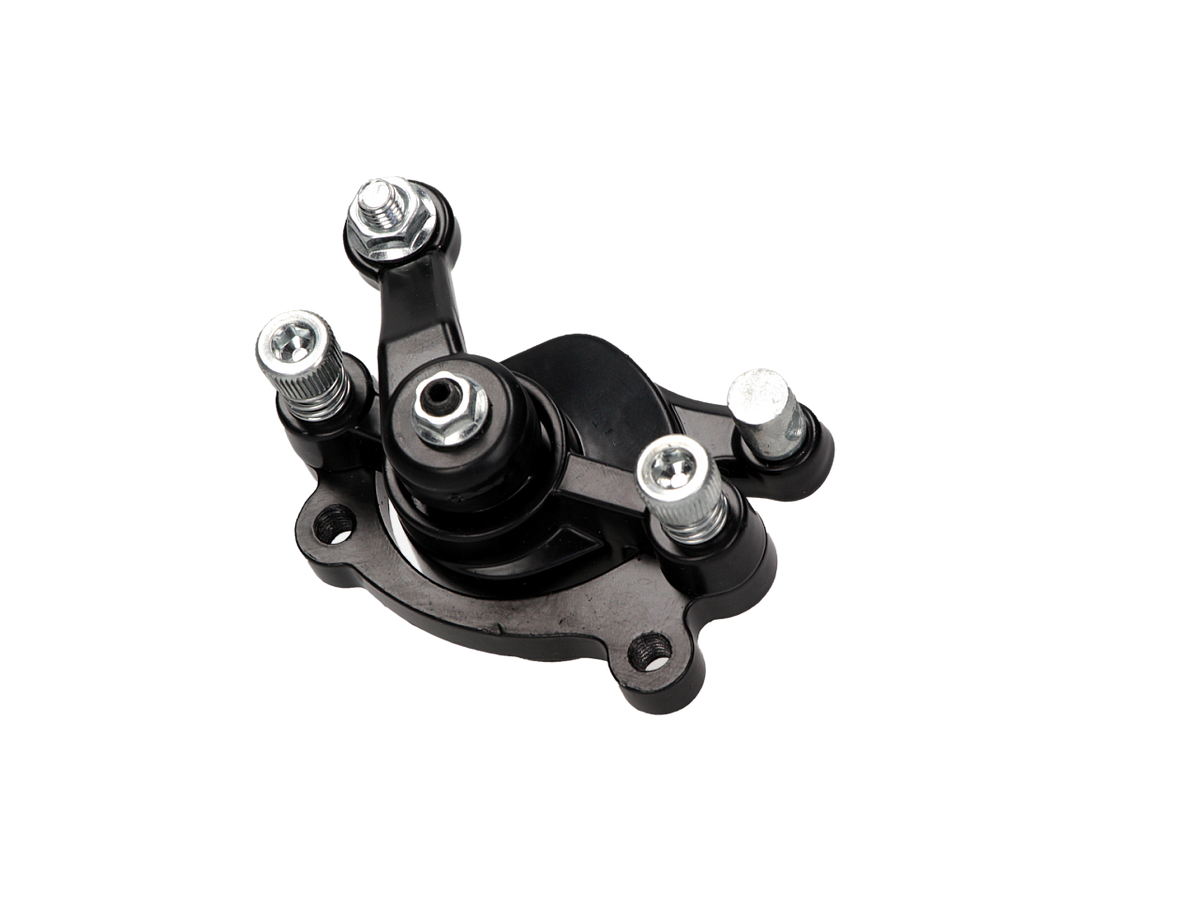

Moturo front brake caliper for Pocket Bike, Dirt Bike and Minicross 49 cc
The Moturo front brake caliper for Pocket Bike, Dirt Bike and Minicross with 49 cc two-stroke engine — a wear part that needs replacing due to age or after a crash. Bolt spacing 51 mm, ready for installation.
The brake caliper clamps the brake pads onto the brake disc of the front wheel brake and transfers the braking force from the lever to the front wheel. The bolt spacing for mounting on the fork leg is 51 mm, matching common hole patterns on Pocket Bikes, Dirt Bikes and Minicross bikes with 49 cc two-stroke engines. The scope of delivery includes the caliper with pre-installed brake pads in OEM quality.
Replacement takes about half an hour with a hex key set and a socket wrench for the mounting bolts on the fork leg. When replacing, bleeding the brake system with fresh brake fluid is mandatory.
Brake caliper for your Pocket Bike, made by Moturo.
Performance · Material · Specs
- Bolt spacing 51 mm at the caliper mounting
- Supplied fully pre-assembled with brake pads
- OEM quality for the front wheel brake
- Fits common Pocket Bikes, Dirt Bikes and Minicross bikes with 49 cc two-stroke engine
Important notes – please read
Original spare part design, no separate ABE required. Universal item: Before ordering, compare the bolt spacing, pad geometry, and brake line connection with your existing caliper based on the product image.
Tools & Time required
- Hex key set in common sizes
- Socket wrench for the mounting bolts on the fork leg
- Torque wrench
- Brake bleeding device or a second person to assist
- Fresh brake fluid
- Approximately half an hour plus bleeding time
Scope of delivery
1 × front brake caliper with pre-installed brake pads. Not included: brake fluid, mounting bolts, tools.
Frequently Asked Questions
Does the caliper fit my bike?
Universal item with 51 mm bolt spacing. Compare the hole pattern and pad geometry with your existing caliper based on the product image before ordering.
Do I need to bleed the system after replacement?
Yes. Replacing the caliper opens the brake system; you must bleed it with fresh brake fluid afterwards, otherwise there will be no pressure point at the lever.
Are the brake pads already installed?
Yes, the caliper comes with pre-installed brake pads in OEM quality, ready for installation upon delivery.
Technical data
- Item number
- 6235834
- Product group
- Brakes
- Brand
- Moturo
- EAN
- Weight
