Moturo carburetor for Suzuki LT 80 Quadrunner

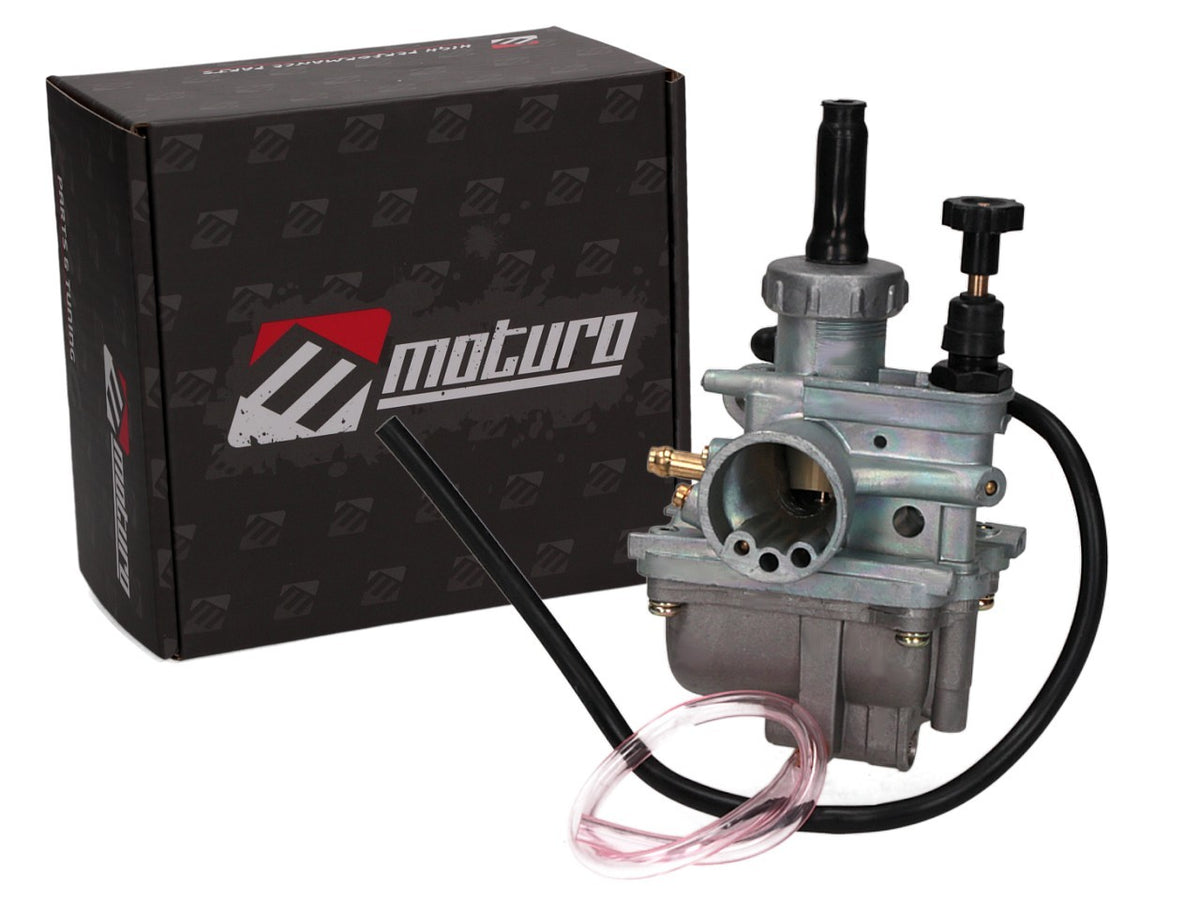

Moturo Carburetor for Suzuki LT 80 Quadrunner 95-04

The Moturo carburetor for Suzuki LT 80 Quadrunner 95-04 — a wear part for when the original carburetor becomes gummed up or after the quad has been sitting idle for a long time. Inlet and outlet match the OE bolt pattern, ready for installation.

The carburetor sits between the air filter and the cylinder head and prepares the fuel-air mixture for the LT 80. The inlet and outlet are modeled after the original carburetor, so the manifold and intake manifold fit without adapters. 82 cc displacement, tuned to the LT 80 with approximately 7 hp from the 1995 to 2004 model years.

The main jet, pilot jet, and float chamber are accessible for later tuning, and the jets can be replaced.

Installation takes about an hour using a screwdriver, hose clamp pliers, and a little carburetor cleaner.

Carburetor for the LT 80, made by Moturo.

Performance · Material · Specifications

• 82 cc displacement, tuned to the LT 80 with approximately 7 hp
• Inlet and outlet match the LT 80 OE bolt pattern
• Main jet, pilot jet, and float chamber accessible for later tuning
• Manifold and intake manifold fit without adapters

Important Notes – Please Read

Component for racing and off-road use. No ABE/StVZO approval. Not for use on public roads. Not compatible with other Suzuki models; bolt pattern and hose connections differ.

Tools & Estimated Time

• Screwdriver
• Hose clamp pliers for the fuel line
• Some carburetor cleaner for the float chamber
• Approximately one hour for an experienced mechanic

Scope of Delivery

1 × Carburetor (ready for installation). Not included: Jet kit for re-jetting, air filter, fuel hose, tools.

Frequently Asked Questions

Which LT 80 model years are compatible?
Both generations with 82 cc displacement: 1995 to 2003 models with approximately 7.3 hp and the 2004 model with approximately 6.7 hp.

Do I need a TÜV inspection/registration?
Component for racing and off-road use, not approved for public road traffic.

How reliable is the factory tuning?
Pre-tuned for the LT 80; adjust jets if at different altitudes or using a modified air filter. Please compare connections and bolt pattern with the product image before ordering.
