Electrical and ignitionItem no. 6235587
Moturo Alternator Stator 8-coil for GY6 50cc to 150cc ATV Quad
The fit is not yet confirmed.
Choose vehicleThe fit is not confirmed. Compare the vehicle details under “Vehicle fit” with your vehicle.
- Questions about fit?Include your vehicle details and the item number.
- Shipping€5.99 within Germany, free from €100.
- Withdrawal14-day statutory right of withdrawal.
- Product safetyManufacturer and safety information for this item.
Description

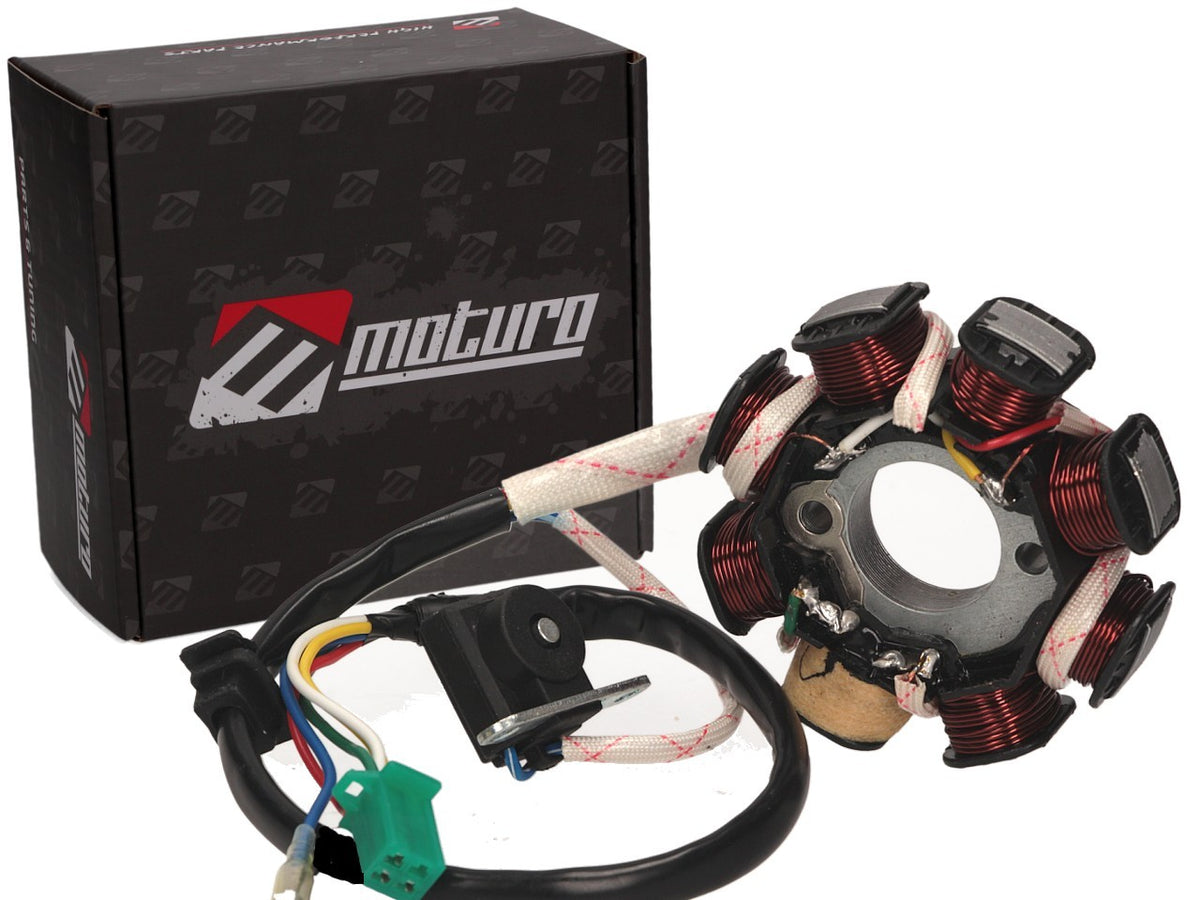

Moturo Alternator Stator 8-coil for GY6 50-150cc ATV Quad
The Moturo 8-coil alternator stator for your GY6 ATV/Quad (50cc to 150cc) — a typical wear part for weak charging or misfiring. Three-pin main connector plus two round connectors, ready to install.
The stator sits behind the flywheel in the alternator cover and provides charging current for the battery, ignition, and lighting. Eight reinforced coils keep the operating temperature low and support the charging curve even at higher RPM. The connection harness comes with a three-pin main connector plus two separate round connectors for the ignition and charging circuit. Universal design for GY6 engines from 50cc to 150cc in scooters, ATVs, and quads.
Replacement takes about an hour with a hex key set, flywheel puller, and torque wrench. Before installation, compare the pin configuration and wire colors with the removed original part.
Stator for your GY6 ATV/Quad, made by Moturo.
Performance · Material · Specs
- Eight reinforced coils for lower operating temperature and longer service life
- Three-pin main connector plus two round connectors for ignition and charging circuit
- Universal design for GY6 engines from 50cc to 150cc
- Applications: scooters, ATVs, and quads
Important Notes – please read
Original spare part design, no separate ABE (general operating permit) required. Universal item: Before ordering, compare the flywheel size, coil arrangement, and connector configuration with the removed original part.
Tools & Time Required
- Hex key set in common sizes
- Flywheel puller for GY6
- Torque wrench
- About one hour for an experienced mechanic
Scope of delivery
1 × Alternator stator with 8 coils, fully assembled with connectors. Not included: flywheel, stator screws, tools.
Frequently Asked Questions
Does the stator fit every GY6 unit?
Universal design, generally compatible. Before ordering, compare the flywheel size and connector configuration with the original part.
Do I need a TÜV registration?
No. Original spare part design in standard configuration.
Why eight coils instead of six?
The distributed winding keeps the operating temperature lower and supports the charging curve even at higher RPM.
Technical data
- Item number
- 6235587
- Product group
- Electrical and ignition
- Brand
- Moturo
- EAN
- Weight
Vehicle fit
Compare model, year and version with your vehicle. Only vehicle details for this item are listed here.
To confirm, we need the complete vehicle data and a verified item assignment.
Choose vehicleVehicle details from the item data
Vehicle details for this item are not yet available in the shop. This is no statement on whether the part fits or not. Please compare the item description with your vehicle or ask us before ordering.
Product safety
- Manufacturer
- Kay GmbH
- Postal address
- Pöttbeek 4, 47638 Straelen, Deutschland
- Electronic contact
- gpsr@moturo.com
- Product
- Moturo Alternator Stator 8-coil for GY6 50cc to 150cc ATV Quad · Electrical and ignition · Item no. 6235587
