Drive and engineItem no. 6235581
Moturo radiator fan type 5 for 200cc - 250cc ATV Quad Dirt Bike
The fit is not yet confirmed.
Choose vehicleThe fit is not confirmed. Compare the vehicle details under “Vehicle fit” with your vehicle.
- Questions about fit?Include your vehicle details and the item number.
- Shipping€5.99 within Germany, free from €100.
- Withdrawal14-day statutory right of withdrawal.
- Product safetyManufacturer and safety information for this item.
Description

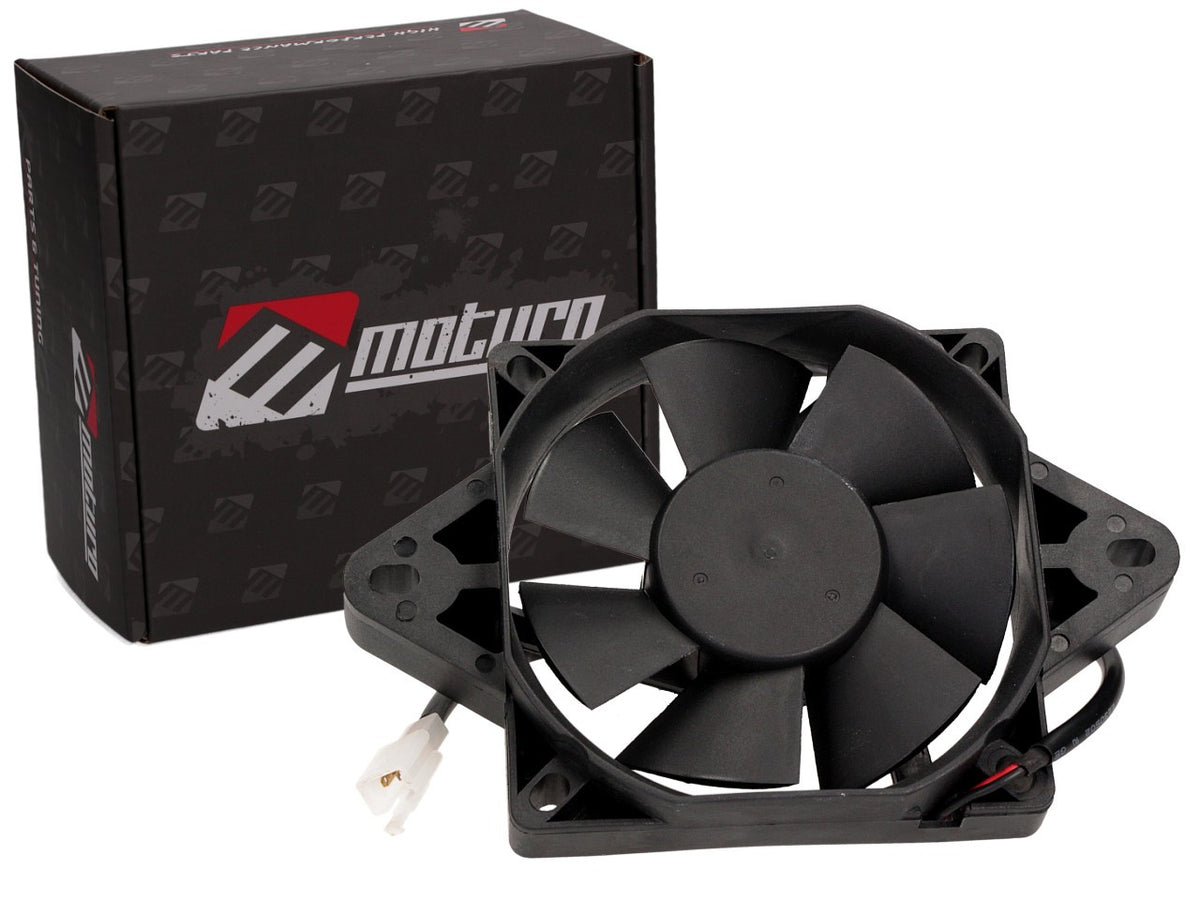

Moturo Radiator Fan Type 5 for 200-250cc ATV, Quad, and Dirt Bike
The Moturo Radiator Fan Type 5 for water-cooled ATVs, quads, and dirt bikes from 200 to 250 cc — a replacement for failed fan motors or blades broken by stone chips. Seven blades, 12-volt connection, ready for installation.
The fan is mounted on the radiator and pushes air through the honeycomb core as soon as the water temperature reaches the threshold. Outer diameter is approximately 118 millimeters square, total width including bolt mounts is around 187 millimeters. The bolt spacing is approximately 163 millimeters across the two horizontal mounts and approximately 100 millimeters between the four square-positioned bolts. 12-volt power supply, two-pin connector in black and red.
Replacement takes about half an hour with an Allen key set and a socket wrench for the mounting nuts.
Radiator fan for your ATV or dirt bike, made by Moturo.
Performance · Material · Specifications
- Seven blades, for water-cooled ATVs, quads, and dirt bikes from 200 to 250 cc
- Bolt spacing approx. 163 millimeters (two horizontal) or approx. 100 millimeters (four in a square)
- Outer diameter approx. 118 millimeters, total width approx. 187 millimeters
- Power supply 12 volts, two-pin connector (black and red)
Important notes – please read
Component for race and off-road use. No ABE/StVZO approval. Not for use on public roads. Before ordering, compare bolt spacing, outer diameter, and pin assignment with the installed fan — universal item without vehicle-specific approval.
Tools & Time Required
- Allen key set in standard sizes
- Socket wrench for the mounting nuts
- About half an hour for an experienced mechanic
Scope of delivery
1 × Radiator fan Type 5 with connection cable. Not included: mounting screws, tools.
Frequently Asked Questions
Does this fan fit my 250cc quad?
Before ordering, compare the bolt spacing and outer diameter with the installed fan. Universal item without vehicle-specific approval.
What is the rotation direction of the fan?
Standard suction towards the engine. Connection: black to negative, red to positive.
Do I need a thermal switch?
The fan runs via the vehicle's electrical system, usually with the existing thermal switch on the radiator.
