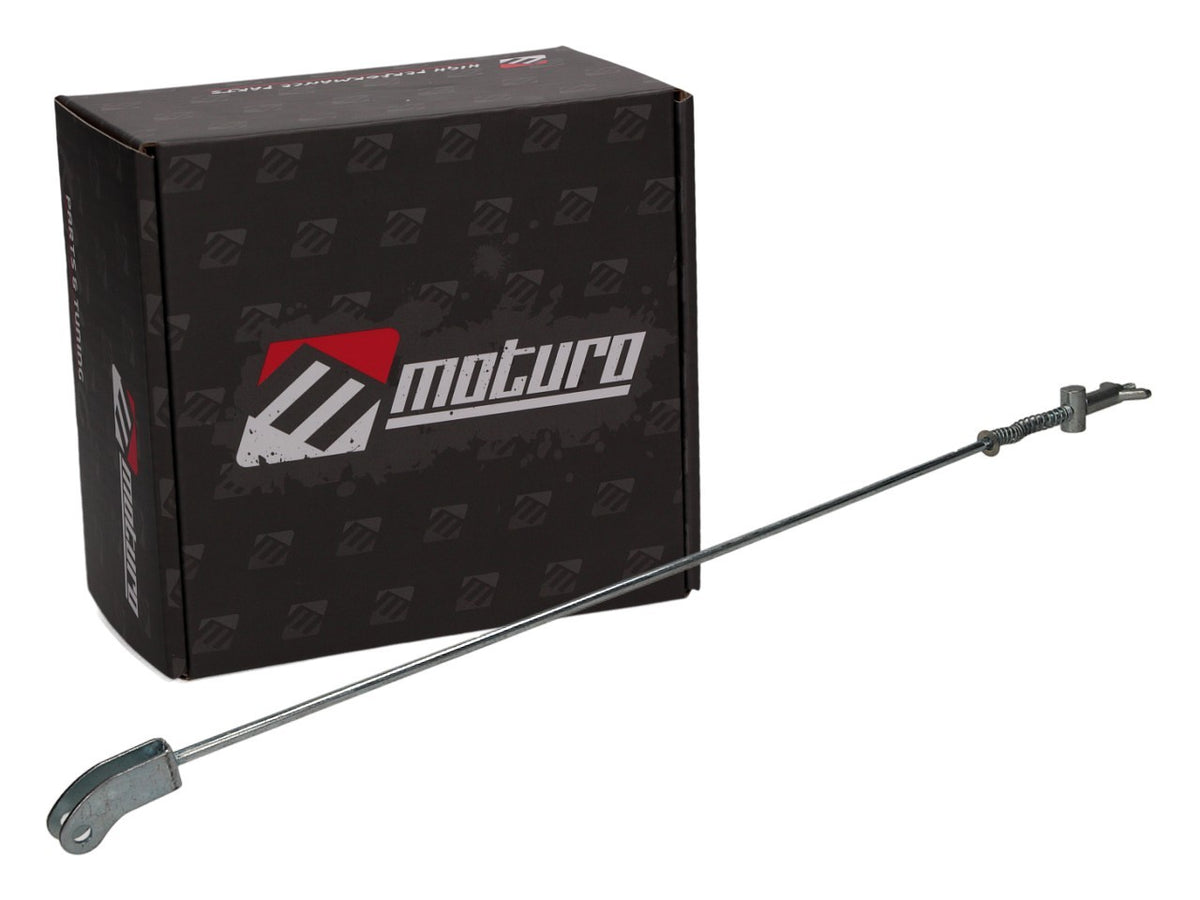

Moturo brake rod rod rear drum brake 380mm for 200cc ATV Quad

Moturo Brake Rod for 200cc ATVs and Quads with Rear Drum Brake

The Moturo brake rod for the rear drum brake on 200cc Chinese ATVs or quads — the first component to be replaced in the event of wear or crash damage. 380 mm length, galvanized, ready to install.

The brake rod transfers the force from the brake pedal directly to the drum brake on the rear wheel. Total length approx. 380 mm, hole diameter approx. 6 mm, galvanized against corrosion and splash water. The return spring is already fitted, so there is no need for pre-assembly.

Universally suitable for various 200cc Chinese ATVs and quads with a rear drum brake. Before installation, compare the length and hole diameter with your original part; if they match, the rod will also fit other engine displacement classes with the same geometry.

Can be replaced in about half an hour with a wrench and new cotter pins.

Brake rod for ATVs and quads, made by Moturo.

Performance · Material · Specs

• Total length approx. 380 mm
• Hole diameter approx. 6 mm at both ends
• Galvanized against corrosion and splash water
• Return spring already pre-assembled

Important notes – please read

Component for race and off-road use. No ABE/StVZO approval. Not for use on public roads.

Universal part for 200cc Chinese ATVs and quads — compare total length and hole diameter with the original part before ordering. The rod will not fit if the geometry is different.

Tools & Time Required

• Wrench set in common sizes
• Cotter pins or locking pins (new parts recommended)
• About half an hour for an experienced mechanic

Scope of delivery

1 × brake rod 380 mm galvanized with pre-assembled return spring. Not included: cotter pins, locking pins, tools.

Frequently Asked Questions

Does the rod fit every 200cc Chinese quad?
Not necessarily. Compare the total length and hole diameter with the original part before ordering.

Is the brake rod street-legal?
No. Not for use on public roads; component for off-road and race use only.

Are cotter pins or locking pins included?
No. Obtain cotter pins separately; new parts are recommended.
