Moturo rear brake master cylinder silver - M10 - for 50cc to 250cc ATV Quad

Moturo rear brake master cylinder silver M10 for ATV Quad 50cc to 250cc

The Moturo rear brake master cylinder in silver for your ATV/Quad from 50cc to 250cc — the central sender for the rear foot brake, ready for installation with connection hose and external reservoir.

The brake master cylinder builds up the hydraulic pressure for the rear brake. The movable plunger has a thread for adjusting the length; the pedal mount accommodates 8 mm holes and is 10 mm wide. Two M8 threaded holes are used for mounting to the frame.

The brake line connection is for an M10 banjo bolt; the hose to the reservoir is flexible and rotatable. Can be replaced in about an hour with a hex key set, open-end wrench set, and torque wrench.

Brake master cylinder for your ATV/Quad, made by Moturo.

Performance · Material · Specs

• Brake line connection: M10 banjo bolt
• Mounting: two holes with M8 thread
• Pedal mount: 8 mm hole, 10 mm wide
• Movable plunger with thread for length adjustment

Important notes – please read

Original replacement part design, no separate ABE (general operating permit) required. Universal item for ATV/Quad from 50cc to 250cc — check connections, hole pattern, and plunger length against your existing part before ordering.

Tools & time required

• Hex key set in common sizes
• Open-end wrench set for banjo bolt and mounting nuts
• Torque wrench
• About one hour for an experienced mechanic

Scope of delivery

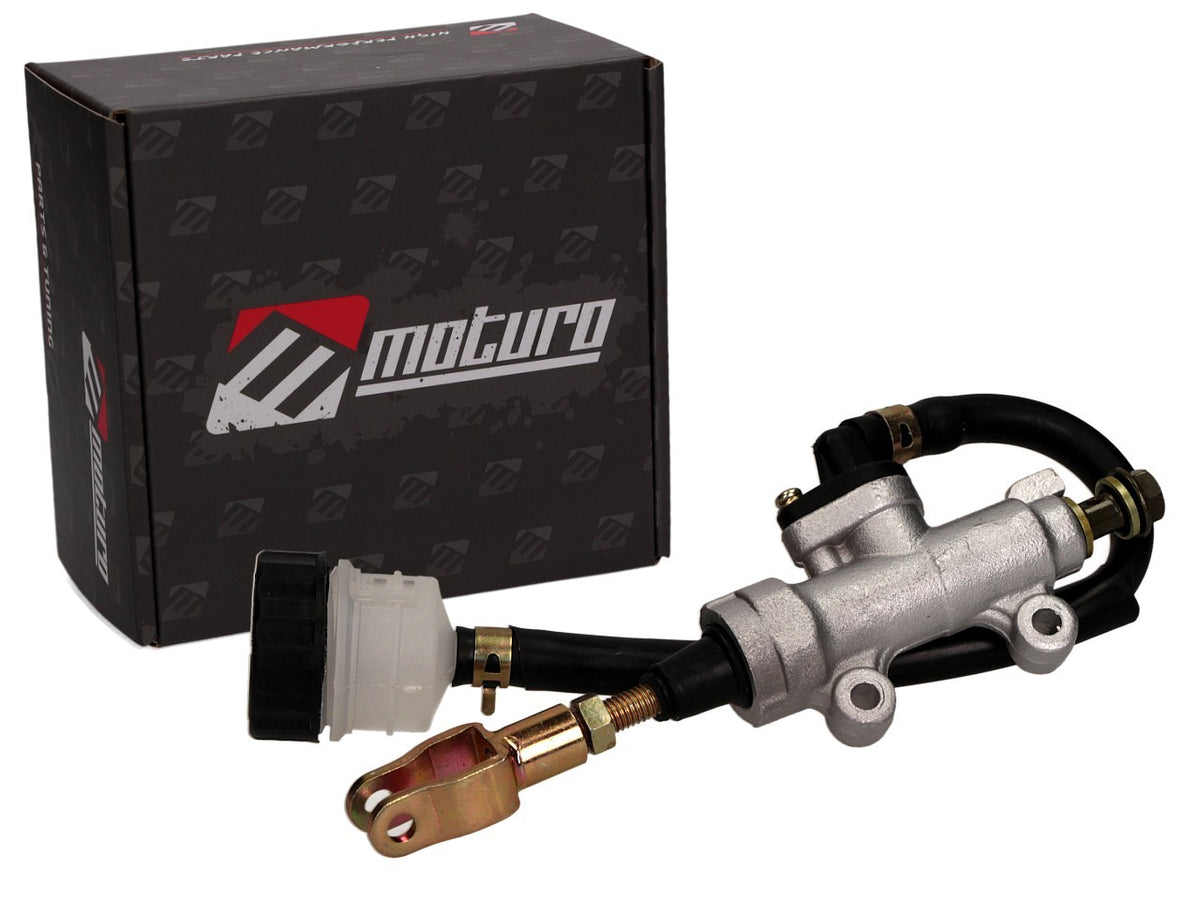

1 × rear brake master cylinder in silver, 1 × connection hose, 1 × external reservoir. Not included: brake fluid, brake line, tools.

Frequently asked questions

Does the brake master cylinder fit my 150cc quad?
Universal item for ATV/Quad from 50cc to 250cc. Compare connections and hole pattern with your existing part before ordering.

Do I need a TÜV registration?
No. Original replacement part design, no separate ABE required.

Is brake fluid included?
No, brake fluid is not included. Please purchase separately.
