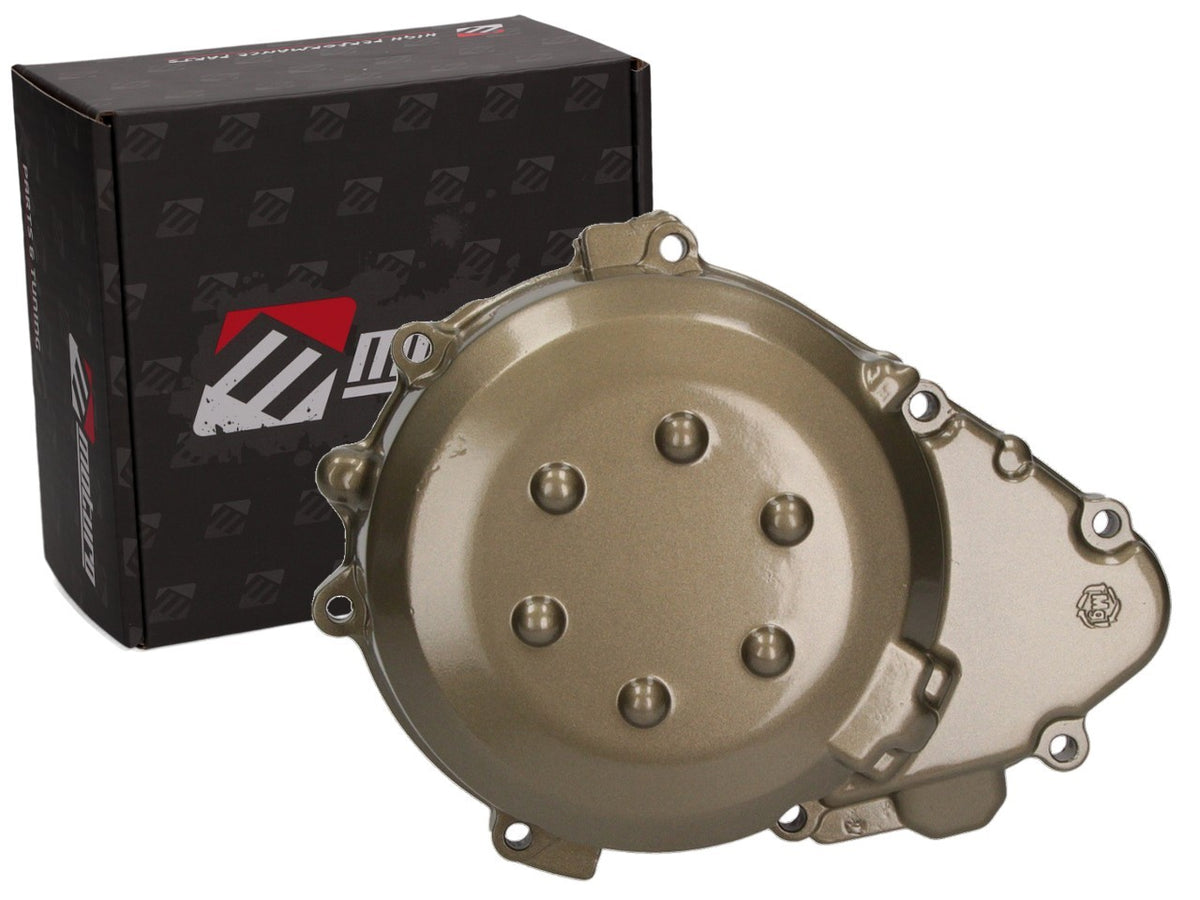

Moturo engine cover left for Kawasaki ZX-9R ZX-900C ZX900E ZX900F 98-03

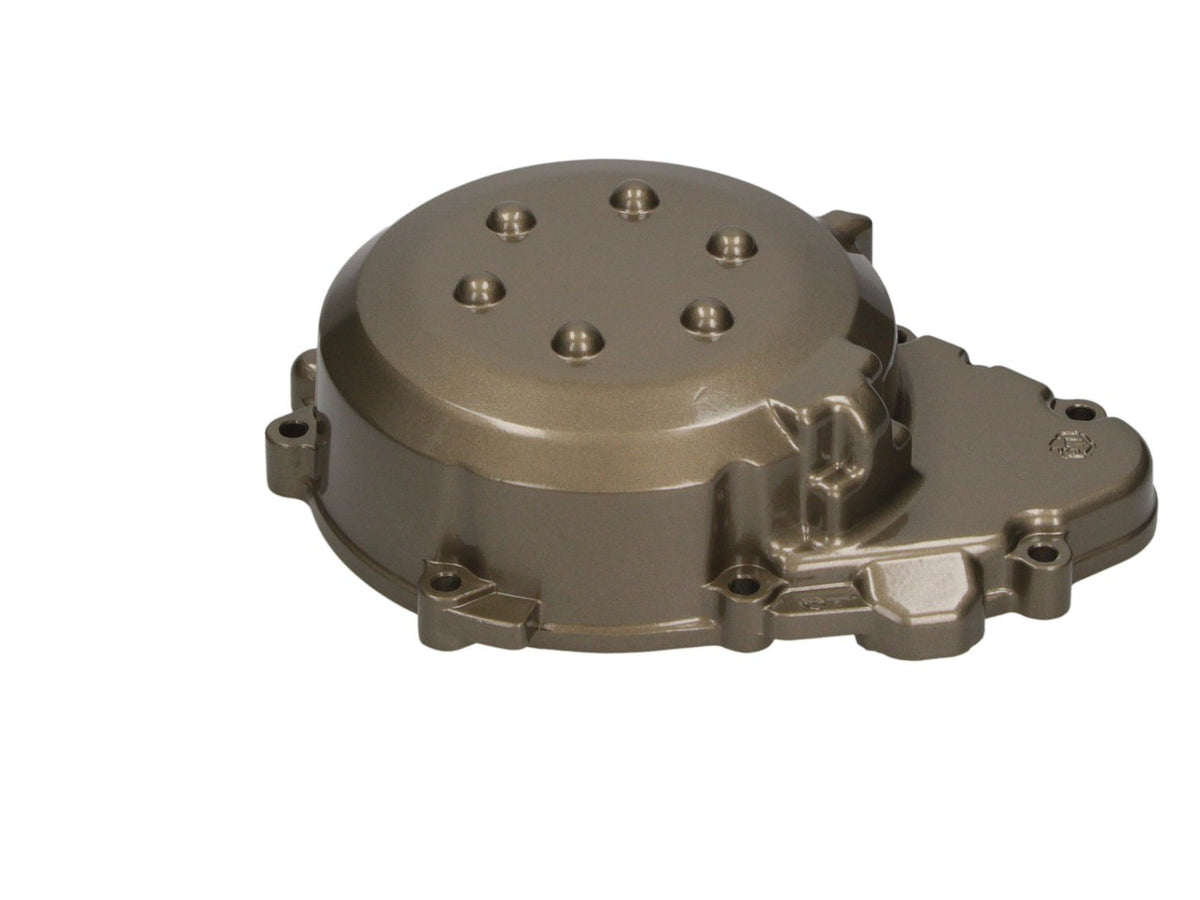

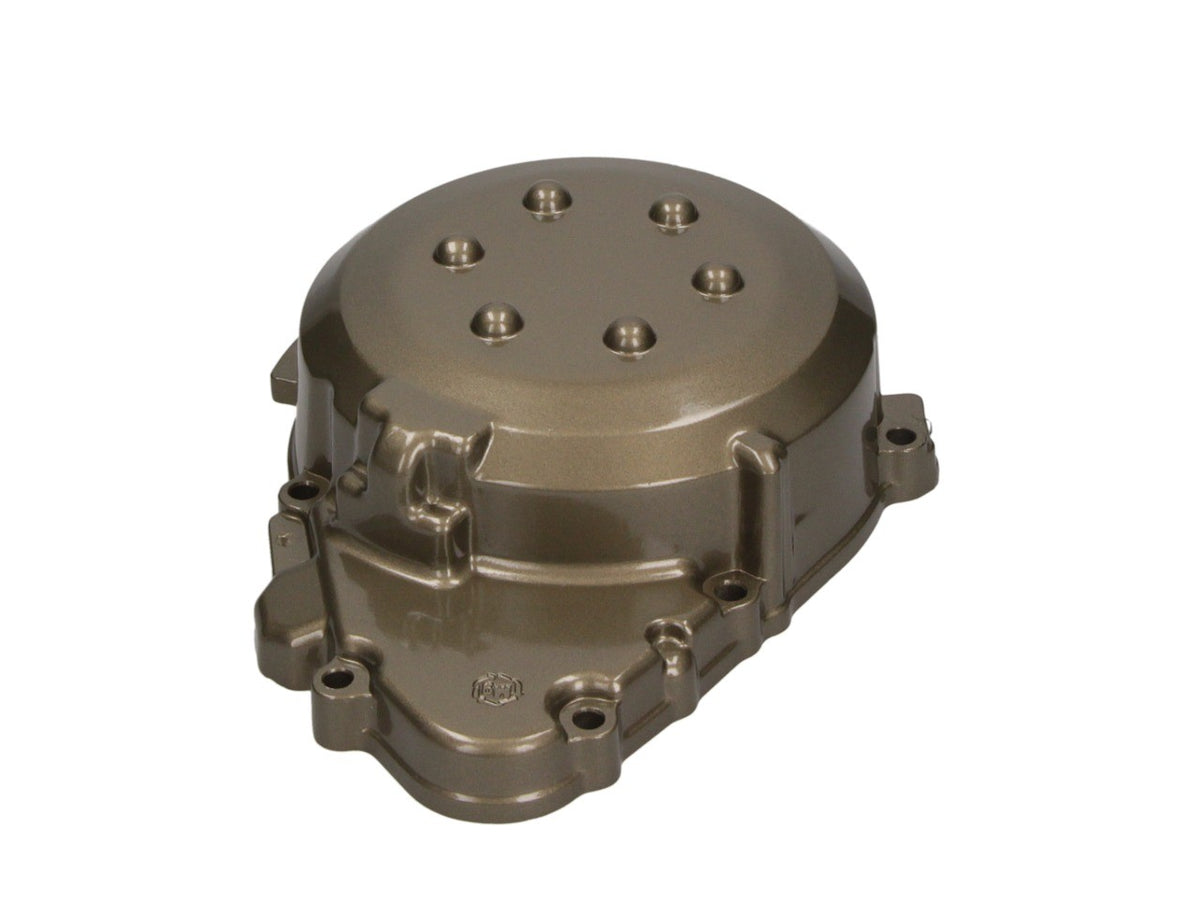

Moturo left engine cover (alternator cover) for Kawasaki ZX-9R 98-03

The Moturo left engine cover for your Kawasaki ZX-9R 98-03 (ZX-900C, ZX900E, ZX900F) — the part that usually takes the impact after a fall. Original hole pattern, ready for installation.

The cover seals the left side of the engine housing and sits over the alternator. The hole pattern follows the ZX-9R workshop manual, as do the torque values and bolt sequence. Mounts for the stator and cable grommet are a precise fit.

Replacement takes about an hour using a hex key set and a torque wrench. Clean sealing surfaces before installation; a new gasket is recommended.

Engine cover for the ZX-9R, made by Moturo.

Performance · Material · Specifications

• Mounts for stator and cable grommet with original hole pattern
• Bolt spacing and tightening sequence for the ZX-9R
• Torque values according to the ZX-9R workshop manual
• Seals the engine housing on the left side over the alternator

Important notes – please read

Original spare part design, no separate ABE (general operating permit) required. Functional part with OE hole pattern for the ZX-9R; the replacement does not require registration. Does not fit the ZX-9R from model year 2004 onwards (different engine platform).

Tools & Time required

• Hex key set in standard sizes
• Torque wrench
• New engine cover gasket (recommended)
• About one hour for an experienced mechanic

Scope of delivery

1 × left engine cover / alternator cover (ready for installation). Not included: gasket, bolts, tools.

Frequently asked questions

Does the cover fit the ZX-9R from 2004 onwards?
No. Different engine platform with different geometry.

Do I need TÜV registration?
No. Original spare part design, no modification requiring registration.

Is a gasket included?
No. Have a new engine cover gasket ready before installation.
