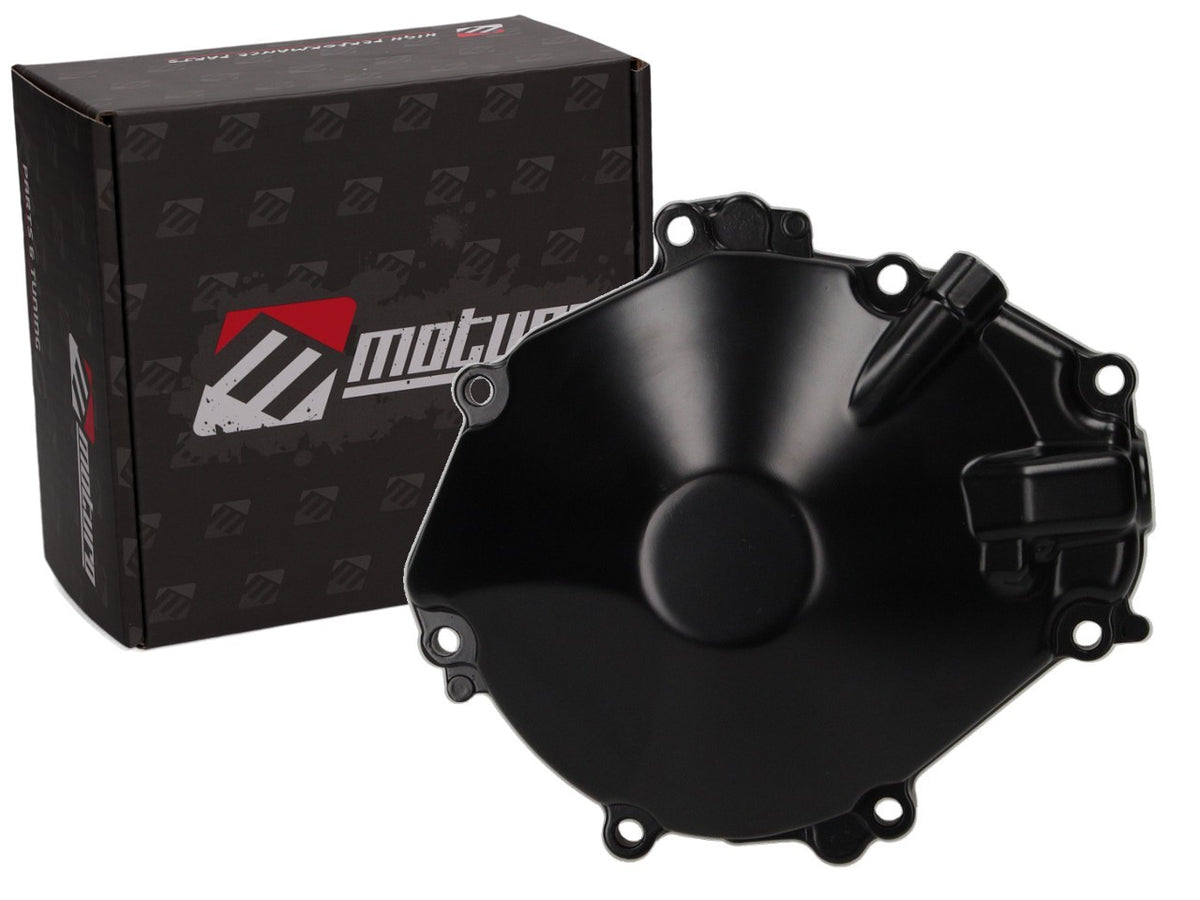

Moturo engine cover left for Suzuki GSX-R 1000 09-11

Moturo engine cover left for Suzuki GSX-R 1000 09-11

The Moturo engine cover left for your Suzuki GSX-R 1000 09-11 (K9-L1) — the most common part that needs replacing after a fall on the left side. OE bolt pattern of the GSX-R, ready for installation.

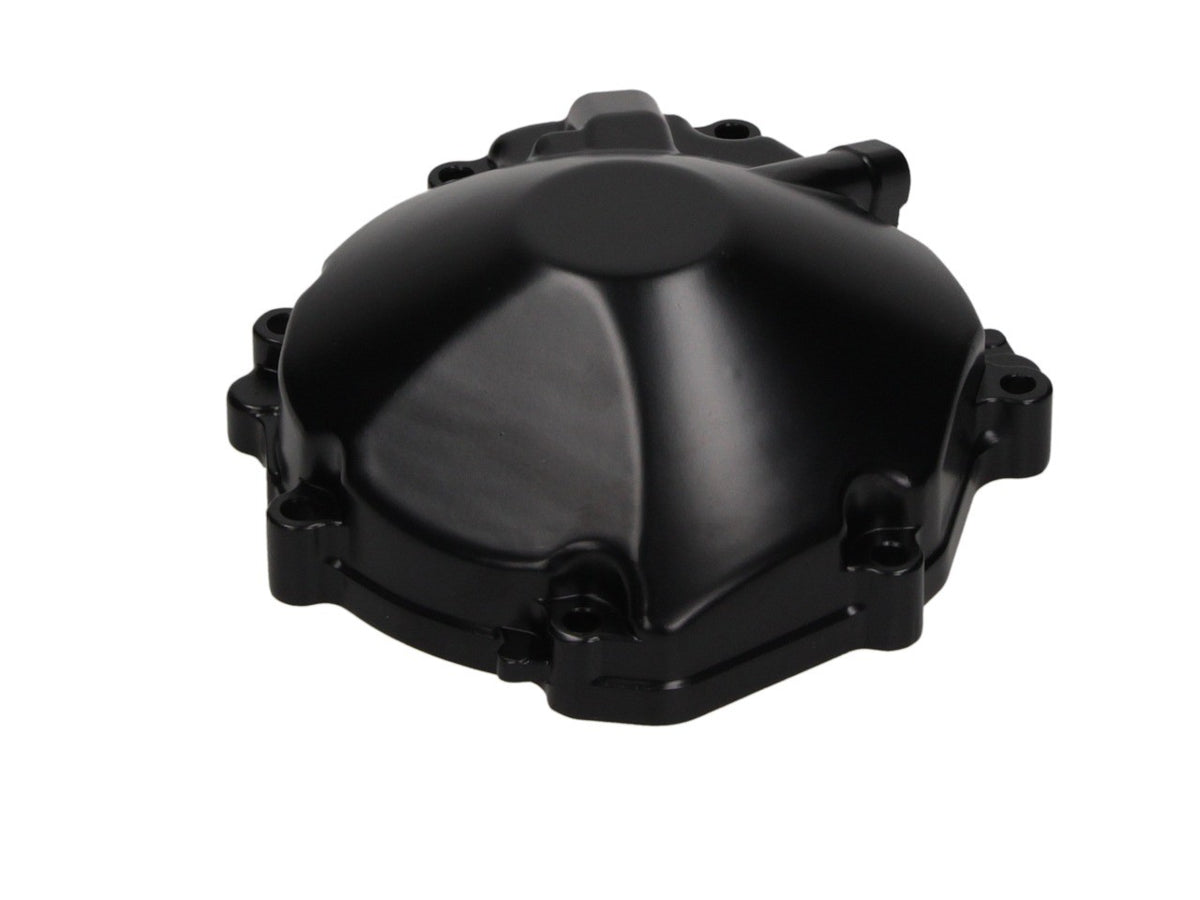

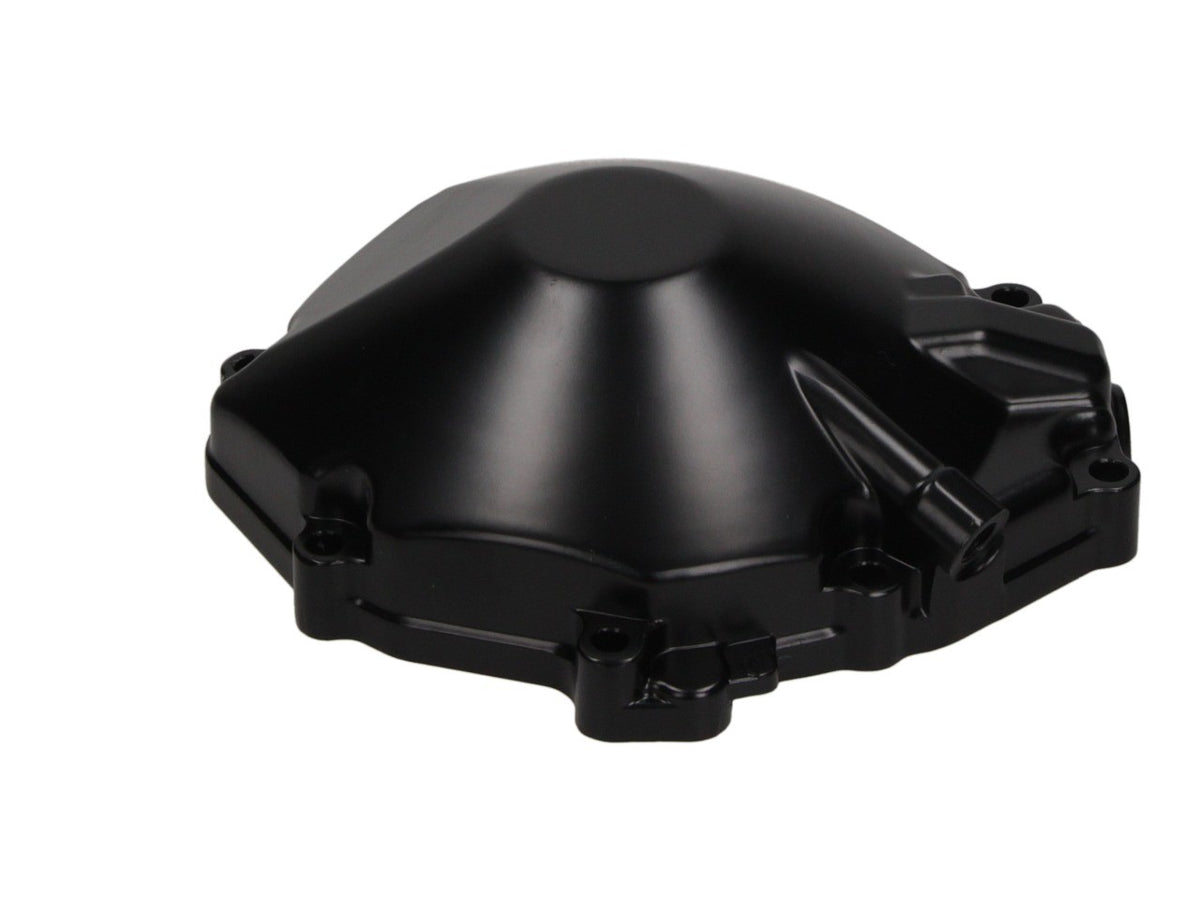

The cover is located on the left side of the engine and seals the alternator housing towards the crankshaft stub. The drill holes follow the OE bolt pattern of the GSX-R 1000 (model years 2009 to 2011, K9 to L1); tightening values follow the GSX-R workshop manual. After a fall on the left side, this cover is usually the first component to crack or grind through.

Replace in about an hour with a hex key set, torque wrench, and a new cover gasket. Drain the engine oil before opening, and follow the tightening values for the bolt sequence when fastening.

Engine cover for the GSX-R 1000, made by Moturo.

Performance · Material · Specs

• Left side of engine, seals the alternator housing towards the crankshaft stub
• OE bolt pattern of the GSX-R 1000 (K9 to L1, model years 2009 to 2011)
• Tightening values according to the GSX-R workshop manual

Important notes – please read

Original spare part design, no separate ABE (general operating permit) required. Clean the sealing surface and insert a new cover gasket before assembly.

Tools & Time required

• Hex key set in standard sizes
• Torque wrench
• Drain pan and rags for draining engine oil
• About one hour for an experienced mechanic

Scope of delivery

1 × Engine cover left (alternator cover). Not included in delivery: cover gasket, bolts, tools, engine oil.

Frequently asked questions

Does the cover fit the GSX-R 1000 from model year 2012 (L2)?
No, different housing geometry from L2 onwards.

Do I need a new cover gasket?
Yes, always. The old gasket deforms when loosened and will not seal reliably again.

What do I need to pay attention to when tightening?
Tighten the bolts in a cross pattern and to the torque values from the workshop manual.
